Structural Analysis of Plane Truss using Mathcad



Input data

Input data cont'd

Input data 2 cont'd

Truss diagram

Member forces

Truss original and deflected shape

Truss support reactions

Structural Analysis of Plane Truss using Scilab

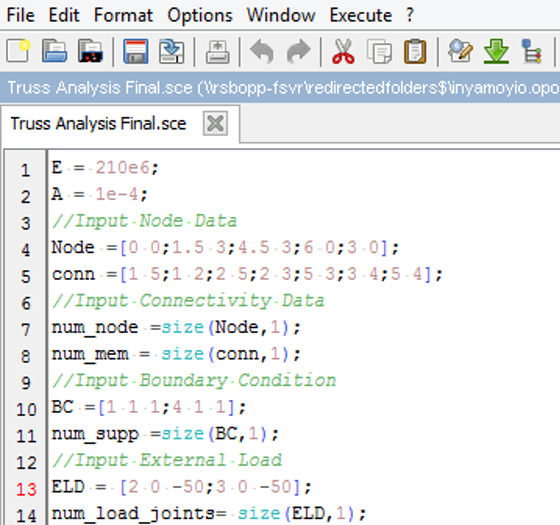

Input data

F  =

   0.

   0.

   0.

  -50.

   0.

  -50.

   0.

   0.

   0.

   0.

External force vector

U  =

   0.

   0.

   0.0017857

  -0.0108753

  -0.0017857

  -0.0108753

   0.

   0.

   0.

  -0.0117682

Deflection vector output

F=

  -55.901699

25

  0

  -25

0

25

  -55.901699

Member forces

ans  =

   1.   25.   50.

 ans  =

   4.  -25.   50.

Support reaction

Truss original and deflected shape

Structural Analysis of Plane Truss using Excel VBA



Input data

Input data cont'd

Output data

Truss diagram

Deflected truss diagram

Program Verification Problem: Structural Analysis of Three Span Beam using Excel VBA

 Sample Three Span Beam Analysis with Excel VBA using Finite Element    Analysis

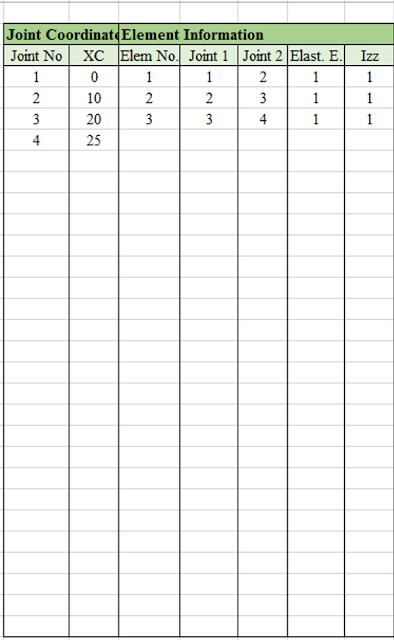

Excel input interface: Joint information

Excel input interface-Support_load information

Excel output interface-Joint displacements

Excel output interface-End forces_Reactions

Program Verification Problem: Structural Analysis of Three Span Beam using Mathcad Prime

 Sample Three Span Beam Analysis with Mathcad Prime using Finite Element Analysis

Sample problem

Input data

Stiffness matrices for spans

Global stiffness matrix

Joint load vector

Joint deflection vector

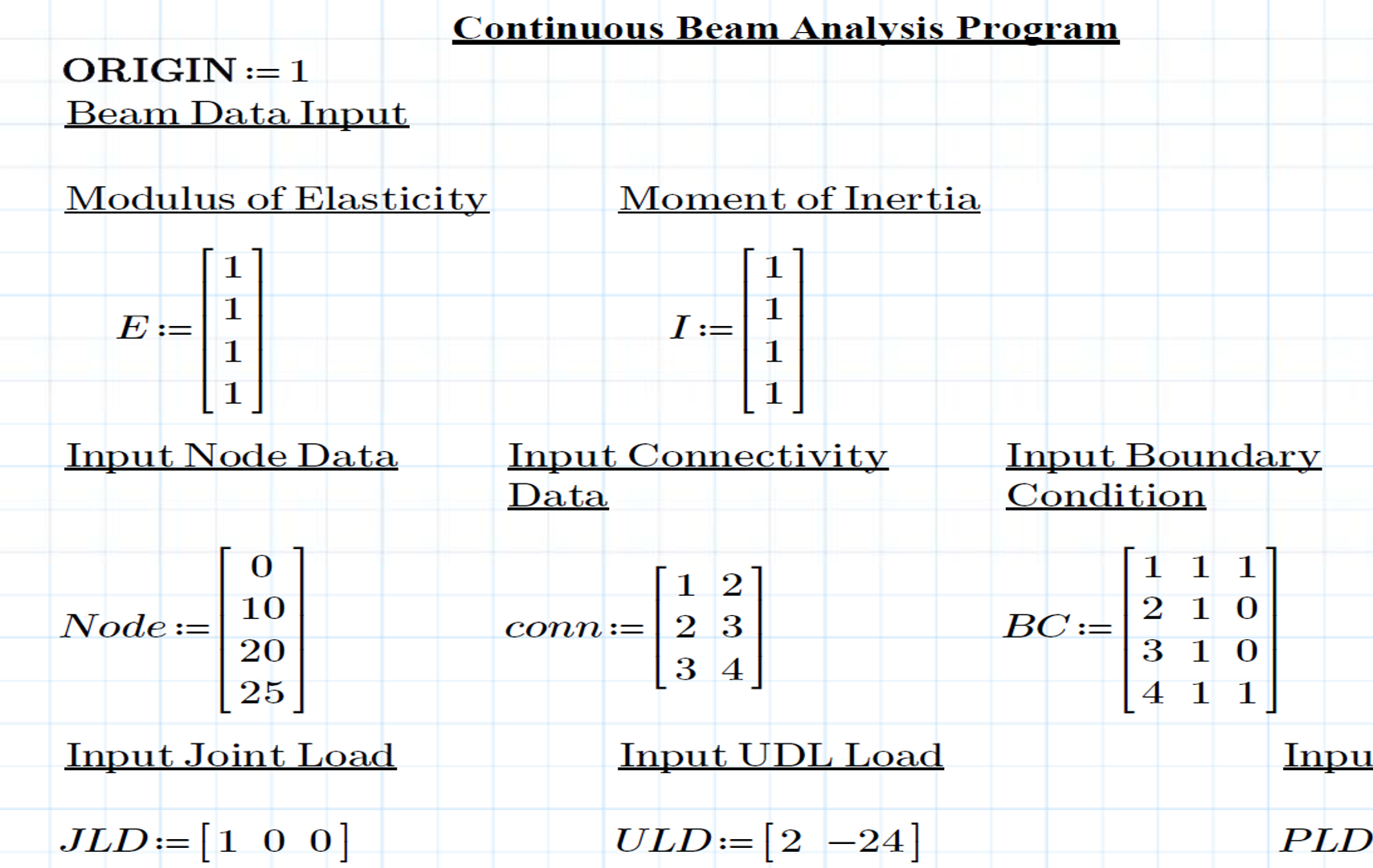

Member end forces

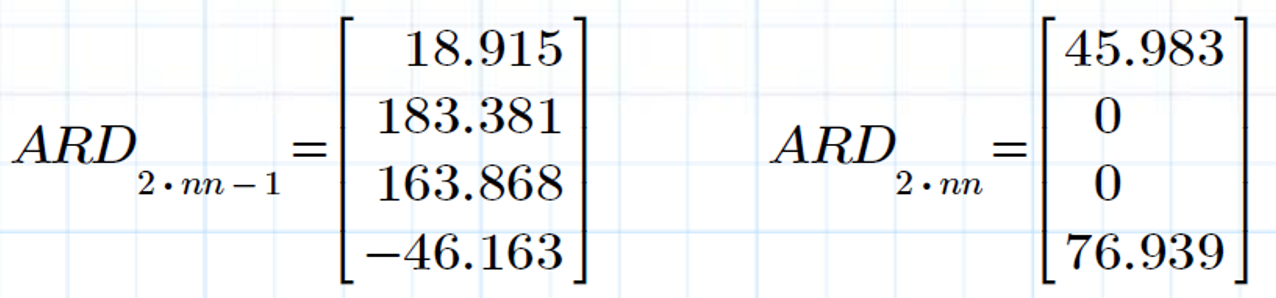

Member end reactions

Program Verification Problem: Structural Analysis of Three Span Beam using Scilab with Visualization

 Sample Three Span Beam Analysis with Scilab using Finite Element Analysis

Sample input file

Stiffness matrix span 1

Stiffness matrix span 2

Stiffness matrix span 3

Global stiffness matrix for the whole beam

Joint load vector

Joint displacements

Member end forces

Support reactions

Bending moment diagram

Shear force diagram

Beam deflection diagram

Beam rotation diagram
